Model Number: CV2136-01
Make: Bosch
Model Number
-
1
CV2136-01
-
2

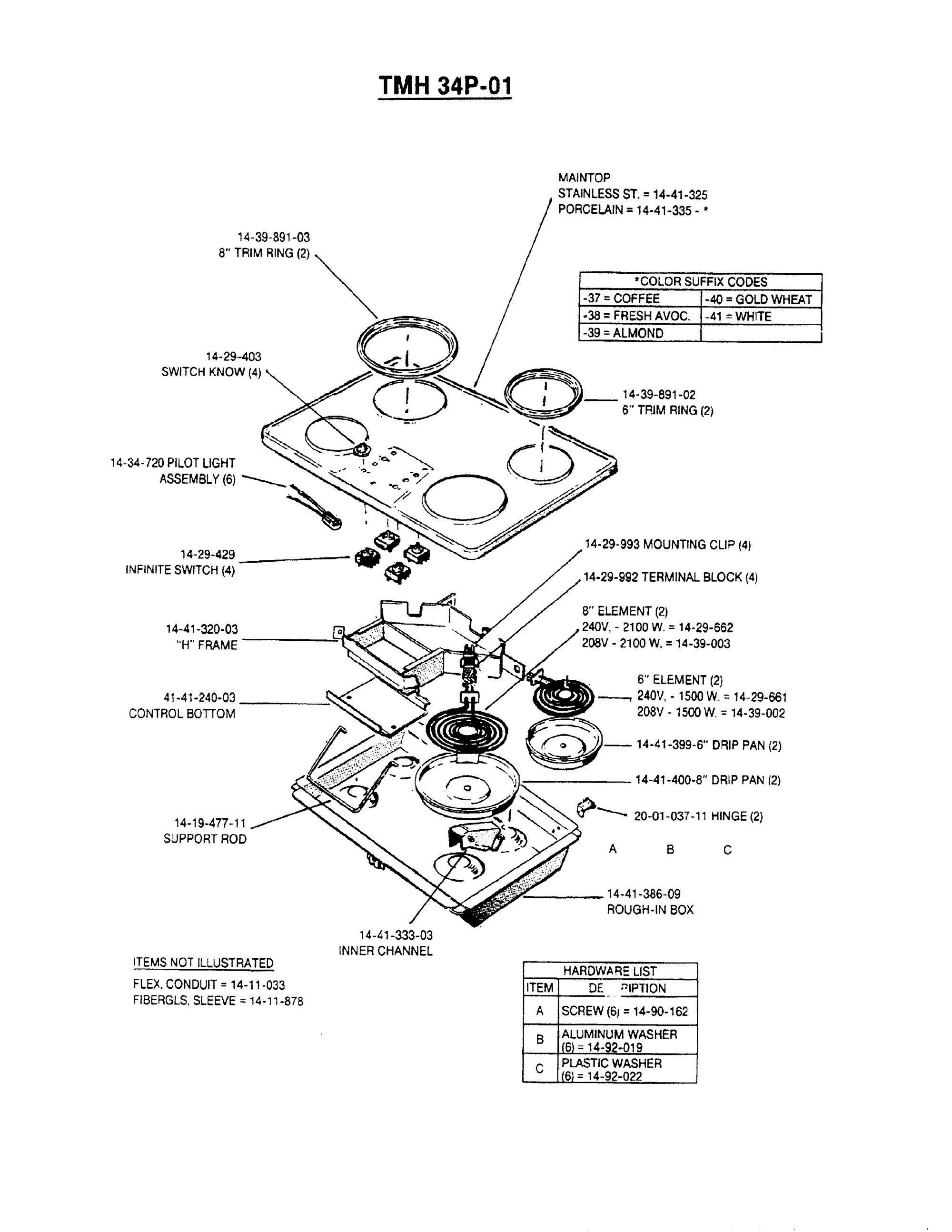

Diagram of the component your part is located in:
-
3
Description Part# Substitution# Diagram Reff ETA Action
Sleeve, fiberglass
14-11-878 - 11 days
Knob, infinite switch
14-29-403 00414500 - 2 days
Element, 6 in. plug-in 240V-1500W
14-29-661 00484782 - 2 days
Terminal block
14-29-992 00414192 - 2 days
Element, 8 in., 208V, 2100W
14-39-003 00484784 - 2 days
Trim ring, 8 in.
14-39-891-03 00484633 - 2 days
H FRAME
14-41-320-03 - 11 days
Drip pan
14-41-399 00487037 - 2 days
Drip pan, 8 in.
14-41-400 00487038 - 2 days
CONTROL BOTTOM
41-41-240-03 - 11 days
Conduit, flex, 1/2 in. x 36 in.
14-11-033 00485343 - 11 days
Rod, support, chrome plated
14-19-477-11 00485461 - 11 days
Switch, infinite
14-29-429 00414604 - 2 days
Clip, mounting
14-29-993 00416254 - - Add to Cart
Trim ring, 6 in.
14-39-891-02 00484632 - 2 days
Maintop, ss, TMH34
14-41-325 00142781 - 2 days
INNER CHANNEL
14-41-333-03 - 11 days
Rough-in box, porcelain, TMH34P
14-41-386-09 00142789 - 11 days
Hinge assy.
20-01-037-11 - 11 days
NLA (was element, 6 in., 208V, 1500W
14-39-002 14-29-942 - 11 days
NLA (Main top, TMH34
14-41-335 - 11 days
NLA (Element, 8 in. 240V, 2100W
14-29-662 00484783 - 2 days
NLA (kit, pilot light assy.
14-34-720 00413018 - 11 days
NLA , use 411093 (screw 8-32 x 3/8 pan hd, ph, zinc
14-90-162 00411093 A 2 days
Washer, 11/64 i.d. x 3/8 o.d., aluminum
14-92-019 00411321 B 11 days
Washer, nylon
14-92-022 00413485 C 2 days
