Model Number: CSX22BCBBWH
Make: GENERAL ELECTRIC
WR02X10098 Refrigerator Grommet
WR13X10020 Hinge Btm Pin & Cam Assy
WR02X10140 Hinge Cam Riser
WR17X3089 Crank Door Recess
WR17X4207 Helix Front Display (1 Pc)
Model Number
-
1
CSX22BCBBWH
-
2

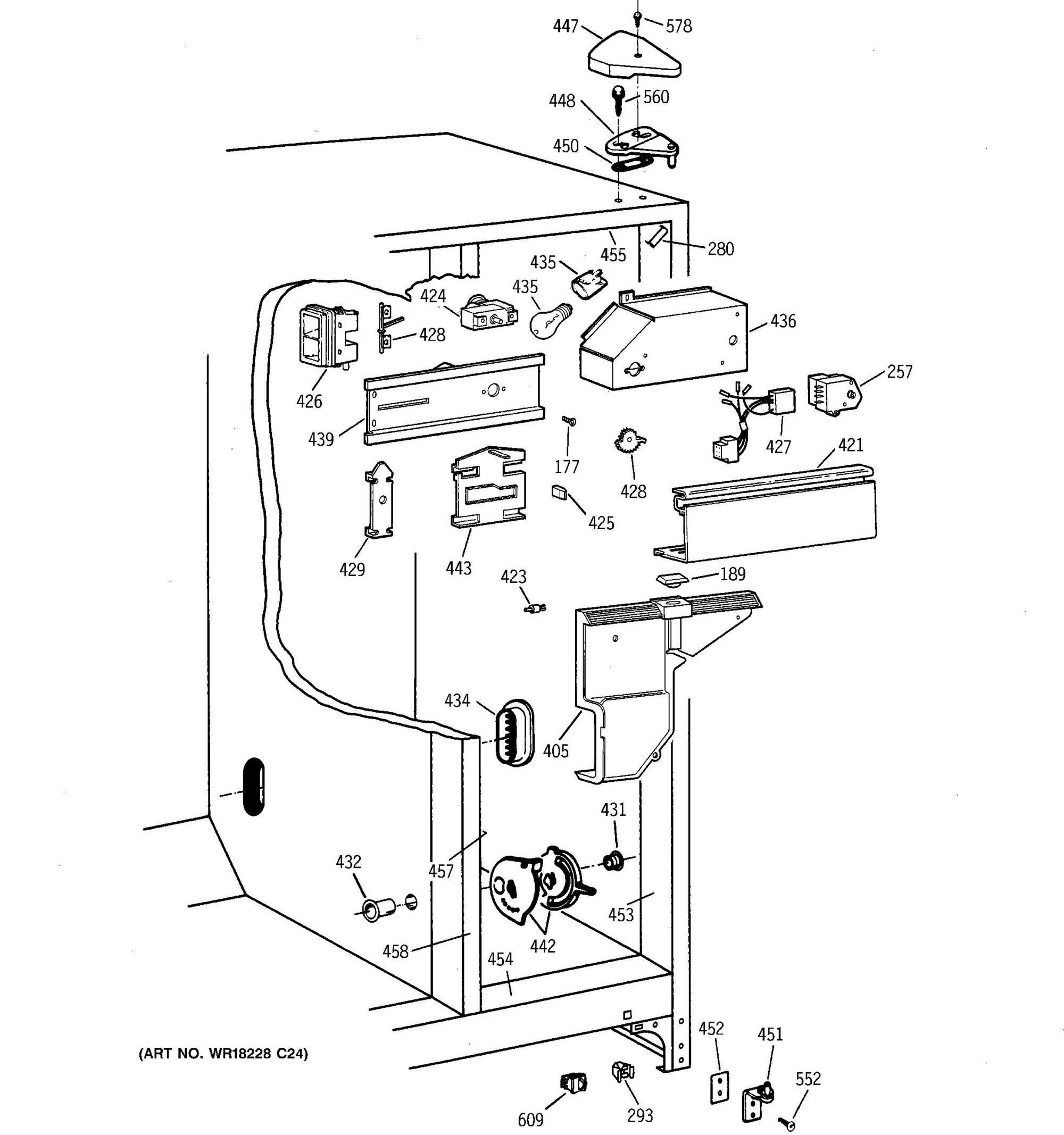

Diagram of the component your part is located in:
-
3
Description Part# Substitution# Diagram Reff ETA Action
SCREW 8-18 A HX 1/2 S
WR01X5034 WZ4X338D 177 5 days
PLUG BUTTON
WR01X2115 WR1X2115 189 11 days
CONTROL DEFROST
WR09X0489 WR9X489 257 5 days
CAP CORNER OC (WH)
WR02X8518 WR2X8518 280 11 days
CLIP-0. CASE-END CAP
WR02X7080 WR2X7080 293 5 days
DUCT AIR RETURN FF
WR17X3890 405 5 days
SHIELD LIGHT FF
WR17X4124 421 11 days
GROMMET SUPPT LT SHIELD
WR02X10050 423 5 days
CONTROL TEMP
WR09X0570 WR9X570 424 5 days
KNOB CONTROL
WR02X8398 WR2X8398 425 11 days
INSUL FOAM NOZZLE
WR02X8425 WR2X8019 426 11 days
HOUSING NOZZLE
WR02X8514 WR2X8514 426 11 days
HARNESS CONT MODULE
WR23X0316 WR23X316 427 5 days
GEAR CONTROL TEMP
WR02X8513 WR2X8513 428 5 days
CONTROL DAMPER
WR02X8569 WR2X8569 428 11 days
SLIDE DAMPER
WR02X8516 WR2X8516 429 11 days
CAP MULLION DUCT
WR02X9299 WR2X9299 431 5 days
DUCT MULLION
WR02X8654 WR2X8654 432 5 days
DUCT AIR RETURN ASM FF
WR02X9431 WR2X9431 434 5 days
LAMP 40W 120V
STD372402 435 11 days
SOCKET TERM BK
WR02X9391 WR2X9391 435 5 days
BRACKET CONTROL MOD
WR02X7736 WR2X7736 436 11 days
CHANNEL CONTROL
WR17X2922 439 11 days
COVER MEAT PAN DUCT
WR02X9355 WR2X9355 442 11 days
RACK CONTROL TEMP
WR02X8570 WR2X8570 443 11 days
HINGE COVER WH
WR02X8262 WR2X8262 447 5 days
HINGE TOP ASM
WR13X0646 WR13X646 448 5 days
SHIM HINGE TOP
WR02X4194 WR2X4194 450 5 days
HINGE BTM PIN & CAM ASM
WR13X10020 451 5 days
SHIM HINGE
WR02X9442 WR2X9442 452 11 days
BREAKER STRIP R/S FF
WR40X1744 453 11 days
BREAKER STRIP BTM FF
WR40X1745 454 11 days
BREAKER STRIP TOP FF
WR40X1746 455 11 days
BREAKER STRIP L/S FF
WR40X1748 457 11 days
NUT U
WR02X4739 458 11 days
BRACKET MULLION BTM.
WR02X7033 WR2X7033 458 11 days
BRACKET MULLION TOP
WR02X9376 WR2X8721 458 11 days
MULLION WH
WR40X1749 458 11 days
SCR 12-24 TT IH .811 S
WR01X10034 WR01X10600 552 5 days
SCREW
WR01X2140 WR01X10204 560 5 days
SCREW 8-32 X 3/8
WZ02X0464 WZ2X464D 578 5 days
SWITCH LIGHT WH
WR23X0193 WR23X37285 609 11 days
