Model Number

1

DDW1899BLS
2

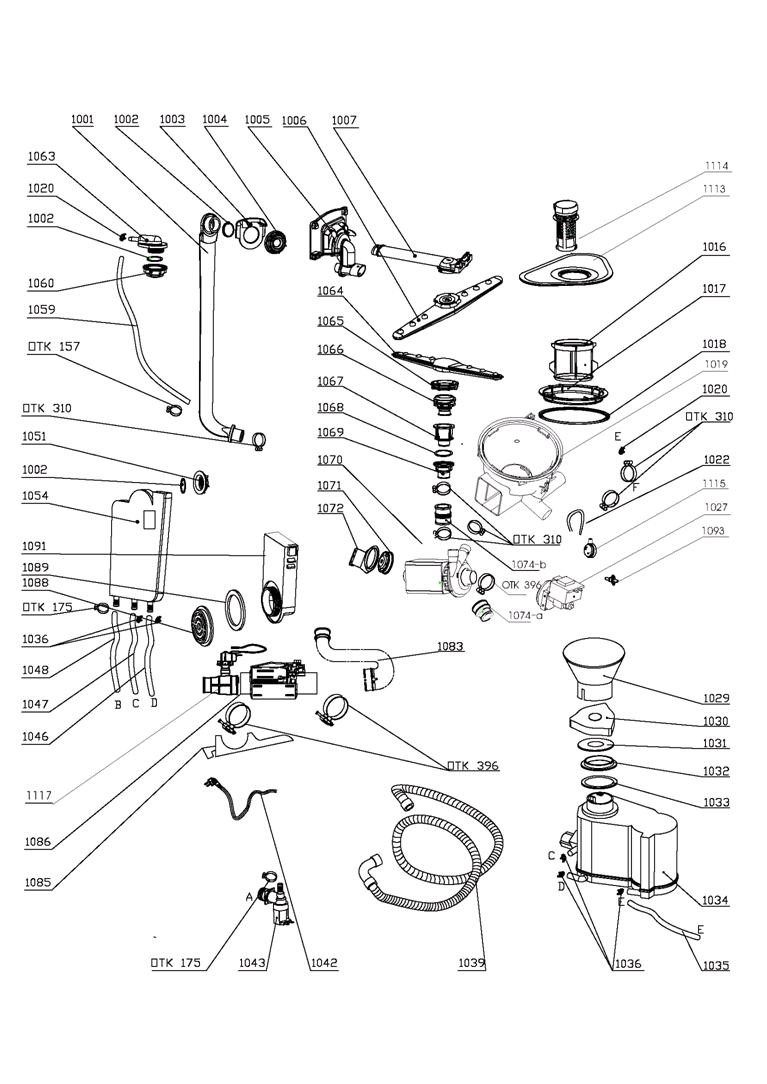

Diagram of the component your part is located in:

Section 1 Image 2

Click to View Diagram

Description	Part#	Substitution#	Diagram Reff	ETA
673000900250	external pipe		1001	11 days
o ring i 31.5x3.55	673001500005	12676000000852	1002	11 days
673001800364	guide casing		1003	11 days
673001600021	external pipe nut		1004	11 days
673001900016	water dispenser		1005	11 days
673000300046	upper sprayer		1006	11 days
673000900195	upper sprayer pipe		1007	11 days
673001700003	upper sprayer nut gasket		1008	11 days
673002500047	micro filter		1016	11 days
sump nut	673001600008		1017	1 days
sump gasket	673001500016	12676000000714	1018	11 days
sump	673000700056		1019	1 days
672000700028	clamp 12.7×1.8		1020	11 days
pvc hose	673000900075		1022	1 days
drain pump	674000600082	11001011000013	1027	11 days
salt filler	673002200001		1029	1 days
673002800050	softener cover assembly		1030	11 days
softener cover gasket	673001700053	12676000000743	1031	11 days
673001600039	softener nut		1032	11 days
softener gasket	673001700001	12676000000742	1033	11 days
softener	674000700018	17476000001403	1034	11 days
softener pipe	673000900224		1035	11 days
clamp 14.5×1.8	672000700029		1036	1 days
drain hose holder	673001500002		1038	11 days
drain hose	673000900046		1039	1 days
inlet valve	674000200005	17476000001132	1043	11 days
regeneration hose	673000900026		1046	1 days
outlet hose of air breather	673000900214		1047	1 days
inlet hose of air breather	673000900037		1048	1 days
air breather nut	673001600002		1051	1 days
air breather assembly	673002700005	12176000003905	1054	11 days
top spraying nozzle	673000900018		1059	1 days
673000900169	top spray		1060	11 days
673001200018	connection of top spray		1063	11 days
lower sprayer	672000600006		1064	1 days
673001600023	lower sprayer nut		1065	11 days
lower sprayer axes	673000300004	12176000009168	1066	11 days
outer tie-in	673001200003		1067	11 days
inner tie-in o ring	673001500007		1068	11 days
673001200019	inner tie-in		1069	11 days
washing pump	674000600053	11001010000106	1070	11 days
washing motor support	672000200054		1071+1072	1 days
connect hose a	673000900140		1074-a	1 days
connect hose b	673000900182		1074-b	1 days
673000900045	bend connect hose		1083	11 days
674001100030	heating elements		1086	11 days
673001600024	water inlet nut		1088	11 days
water inlet gasket	673001500019		1089	1 days
water inlet	673002600035		1091	1 days
sensing device	674000900038	17176000000297	1093	11 days
plane filter	673002500044	12176000003654	1113	11 days
673001300137	scran collection		1114	11 days
pressure switch 140/120	674000300076	17476000001206	1115	11 days
674000300067	pressure switch assembly for heating elements		1117	11 days
673002000081	door edge guard piece		2001	11 days
inner door	672002200145		2002	1 days
door bottom gasket	673001700081	12676000000773	2003	11 days
dispenser bracket	672001700002		2004	1 days
674000800018	dispenser		2005	11 days
674000100655	wiring assembly		2006	11 days
door foam	675000201001		2007	1 days
left hinge	672001400026		2009	1 days
dowel	672001200012		2010	1 days
right hinge	672001400027		2011	1 days
door gemel assembly	672001300020		2012	1 days
door spring	672000100030		2013	1 days
672001100001	door spring bolt		2014	11 days
672001800204	outer door		2017	11 days
673000404496	control panel		2018	11 days
673001800135	handle assembly		2023	11 days
674000300045	power switch		2027	11 days
674001000457	control board		2034	11 days
673002800099	window		2039	11 days
673002400099	circuit board box a		2070	11 days
673002400100	circuit board box b		2071	11 days
673000801118	power button		2950	11 days
673000801116	program key		2951	11 days
673000801466	delay key		2954	11 days
left frame	672002100032		3003	11 days
673001300061	door clamp		3006	11 days
672001400034	door lock		3007	11 days
upper front crosspiece	672001500052		3009	11 days
tank gasket	673001700056	12676000000779	3010	11 days
upright right assembly	672002100031		3011	11 days
673001300102	upper basket cup holder		3013	11 days
673002200080	cutlery basket		3014+3015+3016	11 days
lower basket	672000800181	12976000001398	3017	11 days
672000800156	upper basket		3018	11 days
673001300044	rail block		3021	11 days
rail	672001700005		3022	1 days
673001400056	rail support assembly		3023	11 days
673001100203	washboard		3024	11 days
adjustable foot	672002300008		3025	1 days
feet support assembly	672000200019		3026	1 days
lower front crosspiece	672001500027		3027	1 days
672001901203	tank		3031	11 days
tank band bracing block	673001700010		3032	11 days
lower rear crosspiece	672001500019		3033	11 days
measurable spoon	673002200079		3035	11 days
top board hook	673001300010		3050	11 days
hook	672001200031		3069	1 days
junction box	672001200027		3070	1 days
rinsing agent cup	673006200004		c5004	11 days
