Model Number: GFWS3500L0WW
Make: GENERAL ELECTRIC
WH05X10012 Spring - Suspension
WH08X10050 Driving Belt
WH07X10022 Drive Pulley Kit
WH01X10261 Discontinued
WH10X10006 Front Load Washer Door Lock
Model Number
-
1
GFWS3500L0WW
-
2

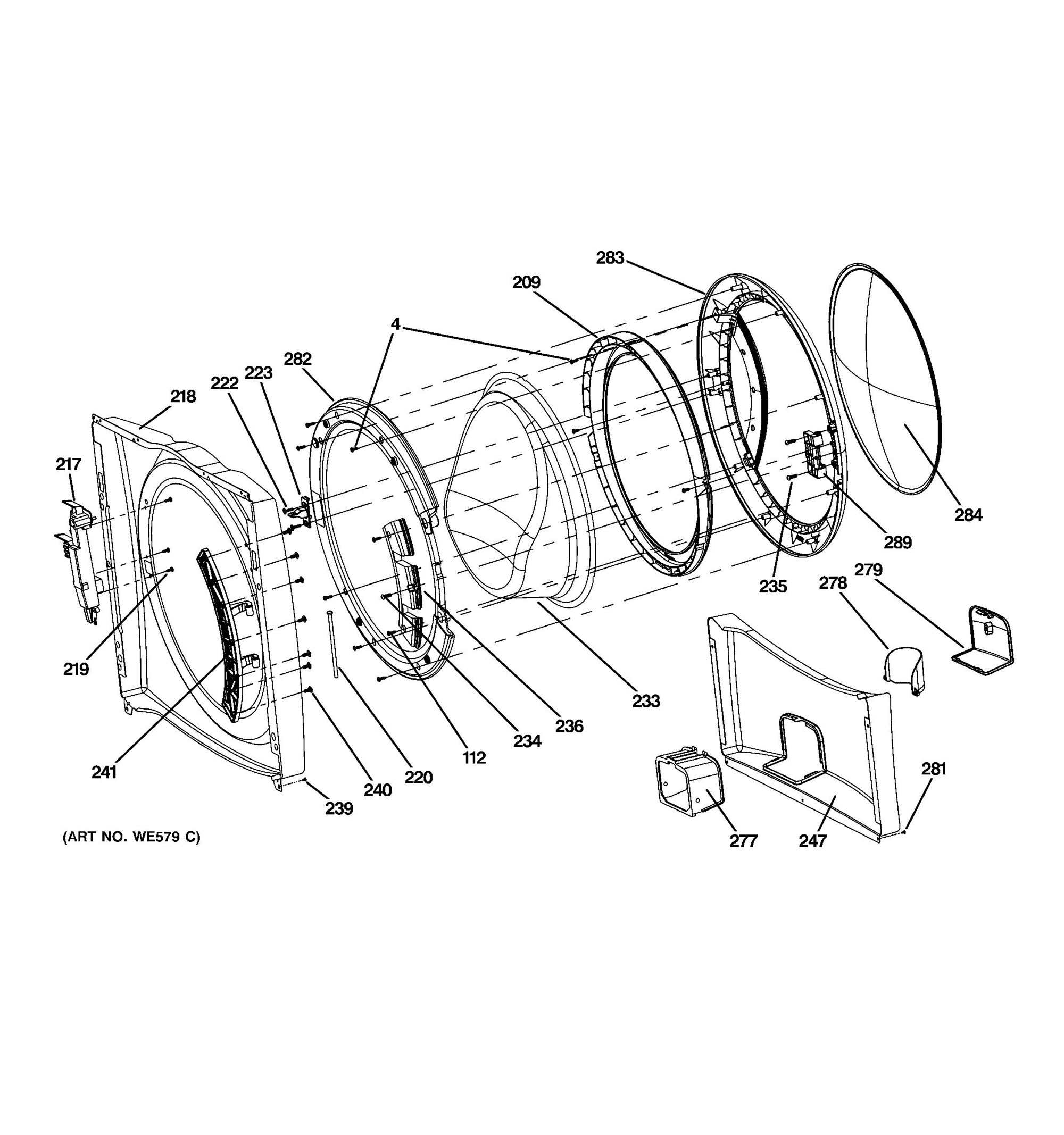

Diagram of the component your part is located in:
-
3
Description Part# Substitution# Diagram Reff ETA Action
SCREW_ST4*25
WH02X10185 112 0 days
INNER RING - DOOR
WH01X10562 209 11 days
DOOR_LOCK
WH10X10006 217 0 days
FRONT PANEL WW
WH46X10247 218 0 days
FRONT PANEL MG
WH46X10248 218 11 days
FRONT PANEL MV
WH46X10249 218 11 days
FRONT PANEL MS
WH46X10250 218 0 days
FRONT PANEL BB
WH46X10251 218 0 days
SCREW ST4*13
WH02X10189 219 0 days
HINGE DOOR PIN
WH01X10560 220 0 days
SCREW_ST4*20
WH02X10191 222 0 days
DOOR PLUNGER
WH01X10356 223 0 days
GLASS - DOOR
WH46X10242 WH46X25561 233 11 days
SCREW M5*16
WH02X10270 234 0 days
SCREW_M5*12
WH02X10194 235 0 days
HINGE COVER
WH44X10248 236 0 days
SCREW_ST4.4*9.5
WH02X10197 239 11 days
SCREW_M5*12
WH02X10198 240 0 days
HINGE
WH01X10559 241 0 days
SERVICE PANEL WW
WH46X10252 247 11 days
SERVICE PANEL MG
WH46X10253 247 11 days
SERVICE PANEL MV
WH46X10254 247 11 days
SERVICE PANEL MS
WH46X10255 247 11 days
SERVICE PANEL BB
WH46X10256 247 11 days
PUMP ACCESS SHROUD
WH01X10567 277 11 days
PUMP DRAIN CHANNEL
WH01X10568 278 11 days
PUMP ACCESS DOOR WW
WH01X10566 279 11 days
PUMP ACCESS DOOR MG
WH01X10575 279 11 days
PUMP ACCESS DOOR MV
WH01X10576 279 11 days
PUMP ACCESS DOOR MS
WH01X10577 279 11 days
PUMP ACCESS DOOR BB
WH01X10578 279 11 days
SCREW_ST4*10
WH02X10219 281 0 days
DOOR COVER ASM
WH46X10257 282 0 days
DOOR FRAME-OUTER ASM
WH46X10258 283 0 days
PROTECT COVER AND RING
WH46X10259 284 0 days
HINGE DOOR PLATE
WH01X10561 289 0 days
SCREW ST4*16
WH02X10222 4 11 days
