Model Number: GSH25JGDD BB
Make: GENERAL ELECTRIC
MWFP Water Filter Canister
WR51X10055 Refrigerator Defrost Heater Assembly
WR60X10185 Refer Dc Evaporator Fan Motor
WR17X11653 Refrigerator Dispenser Door Flap - Black
WR02X11330 Refer Connctr Plstc H20 Line 5/16-5/16
Model Number
-
1
GSH25JGDD BB
-
2

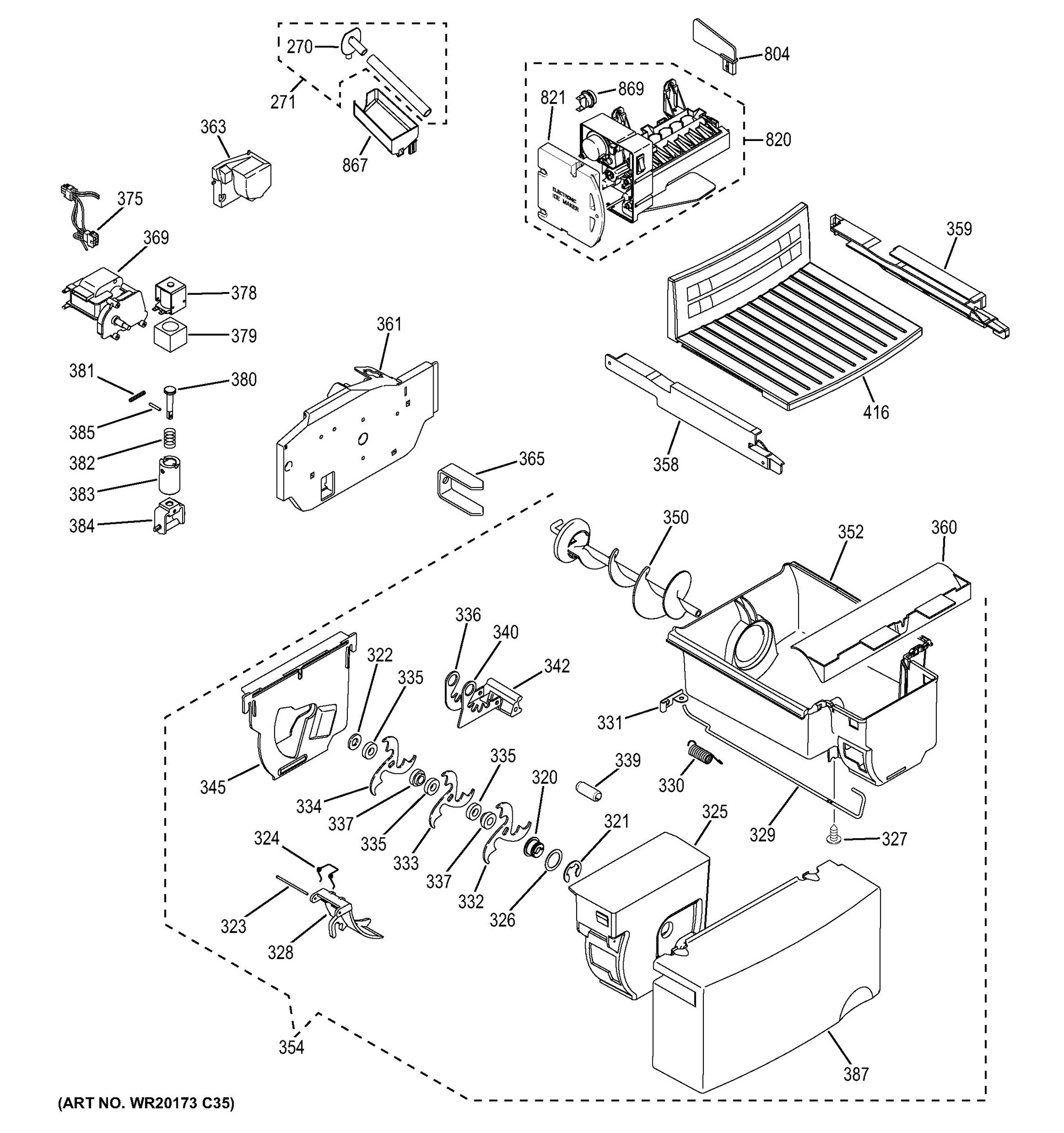

Diagram of the component your part is located in:
-
3
Description Part# Substitution# Diagram Reff ETA Action
GROMMET AND GASKET ASM
WR02X10967 270 3 days
GROMMET AND TUBE ASM
WR17X11506 WR17X11168 271 3 days
NUT AUGER FRT DISP
WR01X10315 320 3 days
RETAINER RING E
WR01X1367 WR1X1367D 321 3 days
SPACER CRUSHER MIDDLE
WR02X11266 322 3 days
PIN DEFLECTOR DISP
WR02X4143 WR2X4143 323 3 days
SPRING ICE DEFLECTOR
WR02X4561 WR2X4561 324 3 days
HOUSING CRUSHER DISP
WR17X11505 325 3 days
WASHER
WR01X1366 WR1X1366D 326 3 days
SCR 8-18 AB PHR 1/2 S
WR01X10607 327 3 days
DEFLECTOR ICE DISP
WR17X10703 328 3 days
WIRE ACTUATOR DISP
WR17X11403 329 3 days
SPRING DEFLECTOR
WR02X10583 WR02X11768 330 3 days
RETAINER SPRING
WR02X10580 331 3 days
BLADES MOVING DISP
WR17X11239 332 11 days
BLADES MOVING DISP
WR17X11240 333 3 days
BLADES MOVING DISP
WR17X11241 334 3 days
SPACER CRUSHER MIDDLE
WR02X4139 WR2X4139 335 3 days
BLADE STATIONARY DISP
WR17X1009 WR17X2216 336 11 days
SPACER CRUSHER STATIONAR
WR02X4138 WR2X4138 337 3 days
PIN SPIRAL
WR02X4141 WR2X4141 339 3 days
BLADE STATIONARY DISP
WR17X2058 340 3 days
STATIONARY BLADES ASM
WR02X10691 342 3 days
COVER CRUSHER HSG DISP
WR17X11497 345 3 days
AUGER ASM DISP
WR17X11705 350 3 days
BUCKET ICE DISP
WR30X10084 WR30X10016 352 3 days
BUCKET & AUGER ASM
WR17X11419 WR17X23255 354 11 days
GLIDE BUCKET LH DISP
WR72X10233 358 3 days
GLIDE BUCKET RH DISPá
WR72X10380 WR72X10234 359 3 days
DIVERTER OVERFLOW
WR17X11449 360 3 days
COVER MOTOR FRONT
WR17X12810 WR17X12733 361 3 days
COVER, AUGER MOTOR REAR
WR17X12735 363 3 days
DRIVE AUGER DISP
WR02X11941 365 3 days
AUGER MOTOR
WR60X10258 369 3 days
HARNESS MOTOR DISP
WR23X10551 375 3 days
SOLENOID & ARM ASM
WR62X0058 WR62X23154 378 11 days
SHROUD SOLENOID
WR17X12811 WR62X26536 379 11 days
PLUNGER SOLENOID
WR02X13138 WR62X23154 380 11 days
PIN SPIRAL
WR02X4257 WR62X26536 381 11 days
SPRING SOLENOID LINKAGE
WR02X13305 WR62X23154 382 11 days
COLLAR SOLENOID DISP
WR17X1065 WR62X23154 383 11 days
STIRRUP SOLENOID DISP
WR02X13139 WR62X23154 384 11 days
PIN SPIRAL
WR02X4259 WR62X26536 385 11 days
COVER BUCKET DISP
WR17X10779 387 3 days
SHELF CHILLER
WR17X12911 416 3 days
IM GUARDRAIL
WR29X10054 804 3 days
ICEMAKER IMX 240V
WR30X10102 WR30X10093 820 3 days
COVER
WR29X10080 WR30X10093 821 3 days
CUP FILL IM
WR29X10058 WR29X10109 867 11 days
THERMOSTAT
WR29X0157 WR30X10093 869 3 days
