Model Number: JGB281DER3WW
Make: GENERAL ELECTRIC
WB08T10026 Receptacle Push-In
WB28K10222 Gas Range Burner Cap - Xl V2
WB29K10023 Gas Range Medium Burner Cap; 9500 Btus
WB02K10182 Range Leveling Leg
WB29K10024 Gas Range Burner Cap-Large; 12000 Btus
Model Number
-
1
JGB281DER3WW
-
2

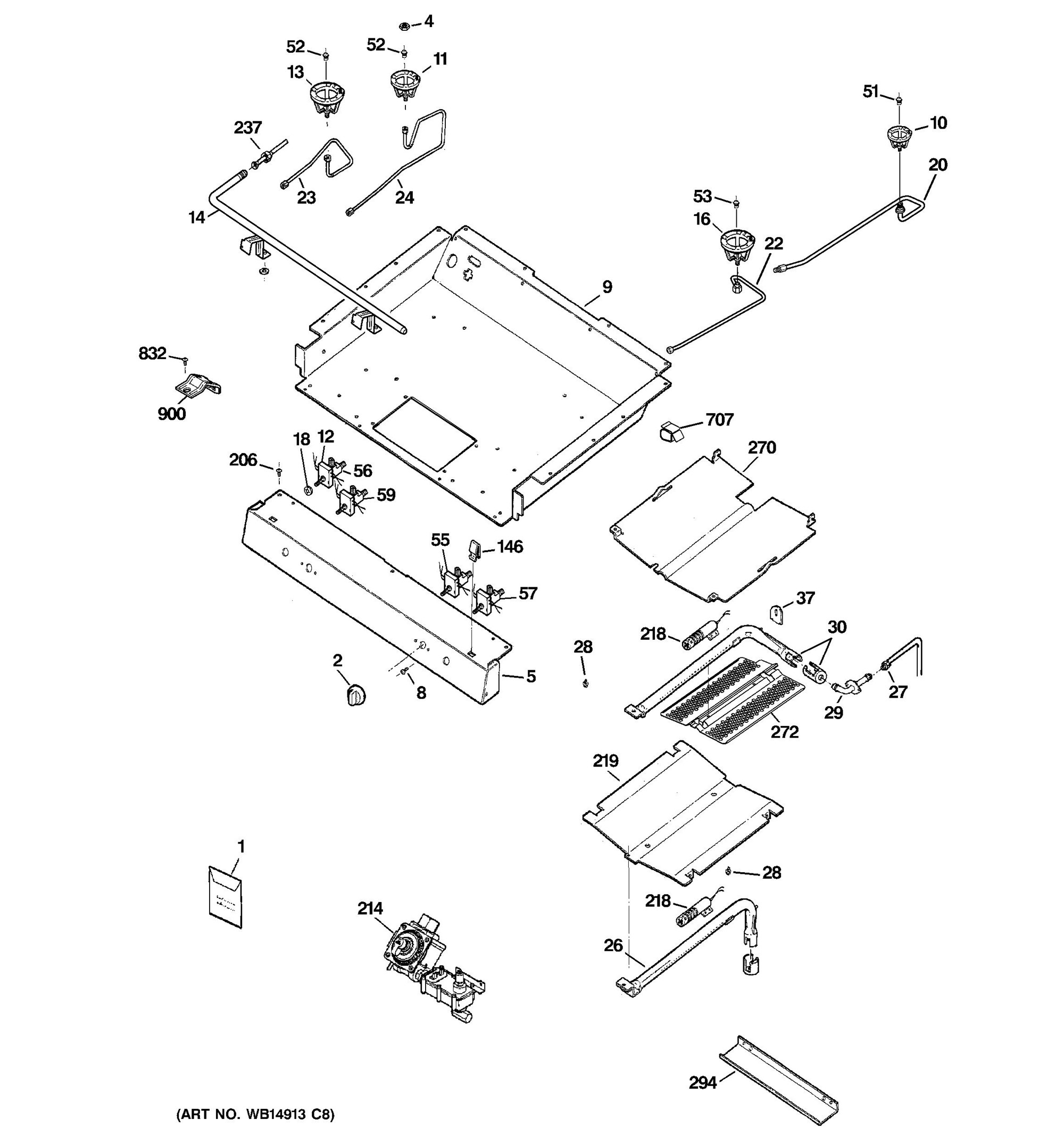

Diagram of the component your part is located in:
-
3
Description Part# Substitution# Diagram Reff ETA Action
CONVERSION STEPS SHEET
31-21483 1 11 days
PM MINI-MANUAL ELECT
31-21494 1 11 days
PM OWNERS AND INSTALL
49-85194-1 1 11 days
CKT BRACKET SM
WB02K10079 WB02K10360 10 5 days
CKT BRACKET MID
WB02K10078 WB02K10361 11 5 days
HARNESS BURNER BOX
WB24K10074 12 5 days
CKT BRACKET LG
WB02K10080 WB02K10362 13 5 days
MANIFOLD PIPE
WB28K10425 14 11 days
CLIP RANGETOP
WB02K0052 WB2K52 146 5 days
BRACKET COOKTOP XL
WB02K10082 16 5 days
COVER VALVE
WB02K0024 WB2K24 18 5 days
KNOB MINIVALVE
WB03K10218 2 5 days
ORIFICE HOLDER ASM
WB28K10682 20 5 days
SCREW
WB01K10091 206 5 days
VALVE CONTROL ASM NOR. D
WB19K10071 214 5 days
IGNITER GLOWBAR
WB13K10020 WB13X25261 218 - Add to Cart
IGNITER GLOWBAR
WB13K10026 WB13K21 218 5 days
FLAME SPREADER
WB49K0044 WB49K10037 219 5 days
ORIFICE HOLDER ASM
WB28K10680 22 5 days
ORIFICE HOLDER ASM
WB28K10683 23 5 days
TUBE MANIFOLD SUPPLY
WB28K10186 WB28X24772 237 11 days
ORIFICE HOLDER ASM
WB28K10681 24 5 days
BURNER BAKE
WB16K10035 26 5 days
TUBE BURNER SUPPLY
WB28K10168 27 5 days
DEFLECTOR
WB49K10025 270 11 days
SHIELD BROIL
WB49K10026 WB49K10045 272 11 days
SCREW MTG IGNITER
WB01K0050 WB1X1293 28 5 days
ELBOW HI BROIL
WB28K10310 29 5 days
COVER TERMINAL DUAL COMB
WB63K10040 294 5 days
BURNER BROIL
WB16K10067 30 5 days
COVER IGNITER
WB34K0014 WB34K14 37 5 days
ECONOMIC NUT
WB01K10037 4 5 days
MANIFOLD PANEL
WB36K10894 5 11 days
ORIFICE-LP RR
WB28K10031 51 5 days
ORIFICE SPUD LP LR
WB28K10215 52 5 days
ORIFICE SPUD LP RF
WB28K10426 53 5 days
VALVE BURNER 270 RR
WB21K10113 55 5 days
VALVE BURNER 270 LF
WB21K10122 56 5 days
VALVE BURNER 270 HI-C RF
WB21K10117 57 5 days
VALVE BURNER 270 LR
WB21K10112 59 5 days
CLIP WIRE
WB02K10267 707 11 days
SCREW 8-32
WB01K10002 8 - Add to Cart
SCREW
WB01K10043 832 5 days
SCREW THERMOSTAT
WB01K10080 832 5 days
BOX BURNER SP
WB63K10190 9 11 days
BRACKET VALVE
WB02K10297 900 11 days
