Model Number

1

ZISW48DRB
2

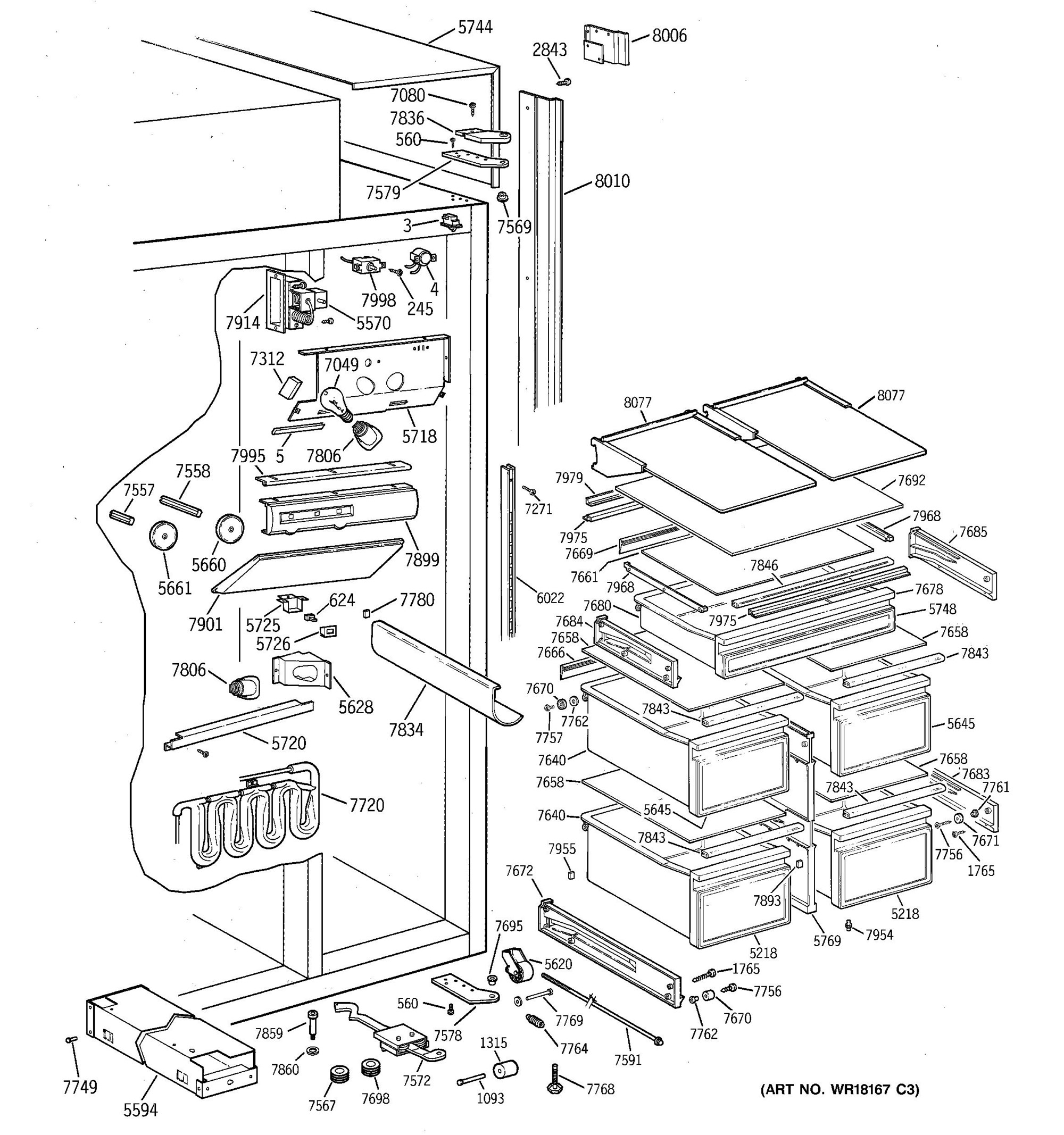

Diagram of the component your part is located in:

FRESH FOOD SECTION

Click to View Diagram

Description	Part#	Substitution#	Diagram Reff	ETA	Action
AXLE FRONT	WR02X8801	WR2X8801	1093	11 days
WHEEL MOBILITY	WR02X3594	WR2X3594	1315	3 days
SCREW SLIDE	WR01X5636	WR1X5636	1765	11 days
SCREW-CONTROL	WR01X5644	WR1X5644	245	11 days
SCREW CASE TRIM	WR01X1903	WR1X2130	2843	3 days
SWITCH LIGHT 200 WATT	WR23X0411	WR23X37285	3	11 days
THEMODISC	WR50X0108		4	11 days
TRIM FF LIGHTS	WR38X1824		5	11 days
PAN VEG ASM 12"	WR32X1424		5218	11 days
DAMPER BRACKET	WR02X8957	WR2X8957	5570	11 days
BASE ASM (RH)	WR13X0671	WR13X671	5594	3 days
BOLT HINGE	WR01X1845	WR1X1754D	560	3 days
MOBILITY FRONT ASM	WR02X8377	WR2X8377	5620	3 days
REFLECTOR VP LIGHT	WR17X3027		5628	11 days
PAN VEG ASM SEALED 12"	WR32X1425	WR32X1424	5645	11 days
KNOB CONTROL FZ	WR02X8600	WR2X8600	5660	11 days
KNOB CONTROL FF	WR02X8601	WR2X8601	5661	11 days
LIGHT REFLECTOR	WR17X3426		5718	11 days
FF WIRE CHANNEL	WR02X8917	WR2X8917	5720	11 days
POWER SAVER SW HSG	WR02X8918	WR2X8918	5725	11 days
POWER SAVER SW COV	WR02X8919	WR2X8919	5726	11 days
HOOD ASM	WR17X3448	WR17X3428	5744	11 days
SNACK PAN ASM	WR32X1423		5748	3 days
PAN DIVIDER ASM	WR17X3431		5769	11 days
SHELF TRACK FZ	WR17X3300		6022	11 days
SW. POWER SAVER	WR23X0396	WR23X309	624	3 days
LAMP	PUR LOC		7049	11 days
SCREW HINGE COVER	WR01X1933	WR1X1933	7080	3 days
SCREW	WR01X5635		7271	11 days
DUTC EXTENSION	WR02X8962	WR2X8962	7312	11 days
SHAFT CONT KNOB FF	WR02X8602	WR2X8602	7557	11 days
SHAFT CONT KNOB FZ	WR02X8603	WR2X8603	7558	11 days
ROLLER SM ACCUAT ARM	WR02X9129	WR2X9129	7567	11 days
BUSHING TOP HINGE	WR02X8587	WR2X8587	7569	3 days
ACTUATOR ARM FF	WR02X8925	WR2X8925	7572	3 days
HINGE FF BTM	WR13X0643	WR13X643	7578	3 days
HINGE FF TOP	WR13X0642	WR13X642	7579	3 days
BASE SHAFT	WR01X1851	WR01X10256	7591	3 days
REAR VEG PAN 12"	WR32X1426		7640	11 days
DIVIDER VP	WR32X1420		7658	11 days
DIVIDER PAN WHITE	WR32X1421		7661	-	Add to Cart
SEAL VP REAR	WR14X0445	WR14X445	7666	11 days
SEAL SNACK PAN REAR	WR14X0446	WR14X446	7669	3 days
ROLLER PAN	WR02X8595	WR2X8595	7670	11 days
ROLLER PAN	WR02X8596	WR2X8596	7671	3 days
SLIDE LH	WR72X0226	WR72X226	7672	11 days
SNACK PAN FRONT	WR17X3445	WR71X2664	7678	3 days
SNACK PAN REAR	WR32X1419	WR32X1566	7680	3 days
SLIDE RH	WR72X0227	WR72X227	7683	11 days
SLIDE SNACK PAN LH	WR72X0228	WR72X228	7684	11 days
SLIDE SNACK PAN RH	WR72X0229	WR72X229	7685	11 days
GLASS SNACK PAN	WR32X1422		7692	11 days
BUSHING BTM HINGE	WR02X8588	WR2X8588	7695	3 days
ROLLER LG ACCUAT ARM	WR02X9130	WR2X9130	7698	11 days
WATER TANK	WR17X3226		7720	3 days
BOLT ADJ HINGE	WR01X1838	WR1X1838	7749	11 days
SCREW	WR01X1830	WR1X1830	7756	11 days
SCREW	WR01X1904	WR1X1791D	7757	3 days
WASHER ROLLER	WR01X1829	WR1X1829	7761	3 days
WASHER ROLLER	WR01X1828	WR1X1829	7762	3 days
SPRING CLOSURE	WR02X8916	WR2X8916	7764	3 days
LEVELING LEG	WR02X7560	WR02X10479	7768	11 days
AXLE REAR	WR02X8800		7769	11 days
BUMPER WINE RACK	WR02X8599	WR2X8599	7780	11 days
LIGHT SOCKET	WR02X8928	WR23X5146	7806	11 days
RACK WINE	WR17X3023	WR17X3364	7834	3 days
COVER FF HINGE	WR13X0639	WR13X639	7836	3 days
SEAL VP FRONT	WR14X0447	WR14X447	7843	11 days
SEAL SNACK PAN FRONT	WR14X0448	WR14X448	7846	3 days
BOLT SHOULDER	WR01X1834	WR1X1834	7859	3 days
WASHER HINGE BOLT LARGE	WR01X1835	WR1X1835	7860	3 days
PAD ROLLER FZ SLIDE	WR02X8617	WR2X8617	7893	11 days
CONTROL PANEL	WR17X3432	WR17X4274	7899	11 days
LIGHT SHIELD FF	WR17X3433		7901	11 days
DAMPER FF	WR09X0513	WR9X513	7914	3 days
SUPPORT PAN DIVIDER	WR02X8920	WR2X8920	7954	11 days
BUMPER PAN SLIDE	WR02X8921	WR2X8921	7955	11 days
RETAINER GLASS SHELF	WR17X3438		7968	3 days
BAR SUPPORT	WR17X3440		7975	11 days
SHELF STOP	WR02X8922	WR2X8922	7979	11 days
FF CONTROL PANEL GASKET	WR14X0449	WR14X449	7995	11 days
FZ CONTROL	WR09X0523	WR9X523	7998	3 days
END CAP RIGHT	WR17X3658		8006	11 days
TRIM CASE FF SIDE	WR17X3028	WR74X245	8010	11 days
SHELF ASM GLASS	WR71X2401		8077	11 days
