Model Number: MDB4949SDE0
Make: MAYCOR APPLIANCE
Model Number
-
1
MDB4949SDE0
-
2

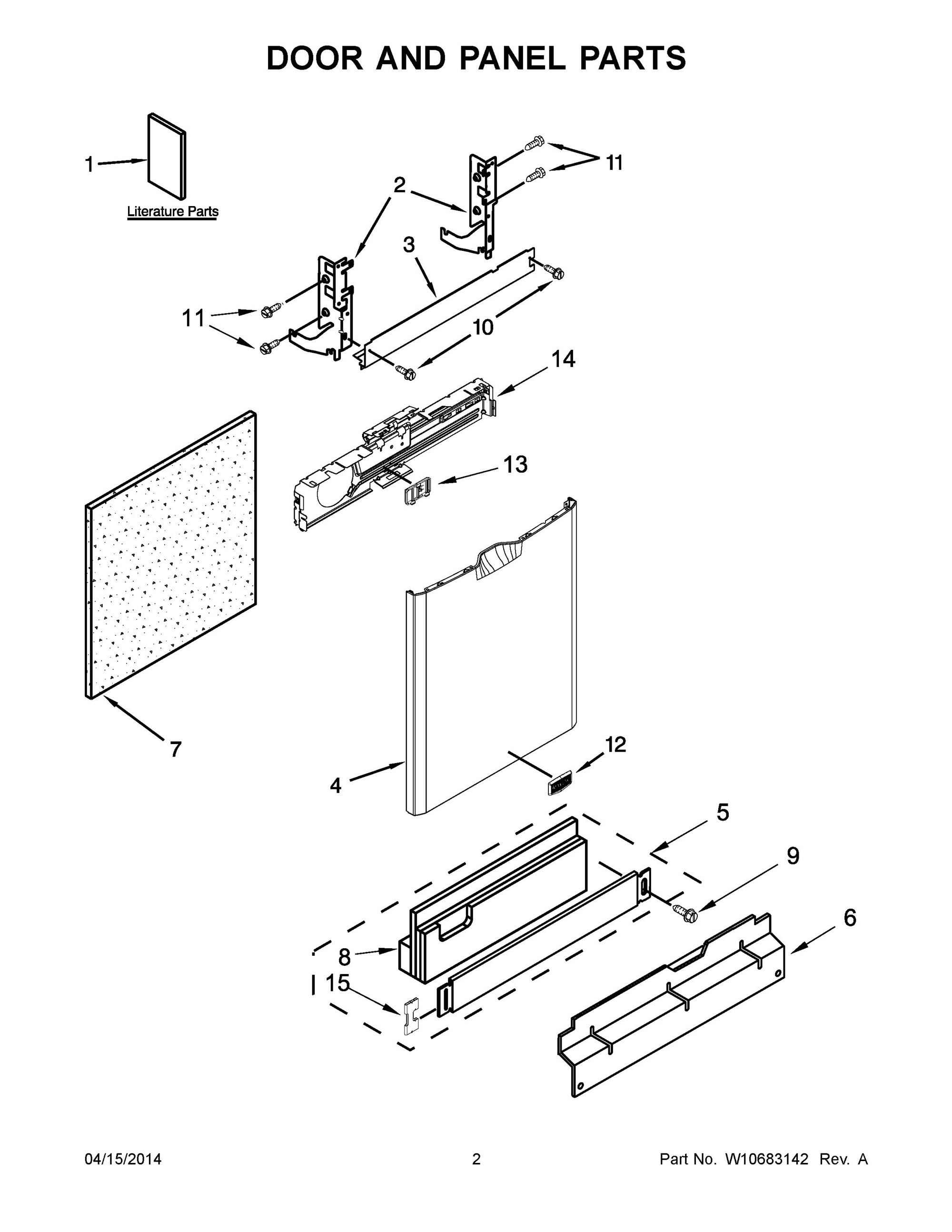

Diagram of the component your part is located in:
-
3
Description Part# Substitution# Diagram Reff ETA Action
ENERGY GUIDE
W10599490 1 11 days
USE & CARE GUIDE
W10599529 1 11 days
TECH SHEET, ENGLISH
W10610054 1 11 days
TECH SHEET, FRENCH
W10610057 1 11 days
INSTALLATION INSTRUCTIONS
W10649077 1 11 days
Screw
304392 10 11 days
SCREW
3400071 WP3400071 11 5 days
BADGE
W10612925 WPW10612925 12 5 days
SPACER, CONTROL BRACKET PANEL
W10463662 13 5 days
BRACKET, CONTROL
W10641745 W11116870 14 5 days
CLIP, GROUND
8269016 WP8269016 15 5 days
ARM, HINGE (RIGHT HAND)
8534853 W11612303 2 11 days
ARM, HINGE (LEFT HAND)
8534854 W11612302 2 11 days
BARRIER, VAPOR ASSEMBLY
W10321449 W10850371 3 5 days
FRONT PANEL (INCLUDES ITEM 12) (BLACK)
W10562110 W10803806 4 5 days
FRONT PANEL (INCLUDES ITEM 12) (WHITE)
W10562111 WPW10562111 4 5 days
FRONT PANEL (INCLUDES ITEM 12) (STAINLESS)
W10562114 4 11 days
TOE PANEL (BLACK)
W10586590 W10871196 5 5 days
TOE PANEL (WHITE)
W10586591 WPW10586591 5 5 days
ACCESS PANEL (BLACK)
W10195777 W11763736 6 11 days
ACCESS PANEL (WHITE)
W10195778 W10909066 6 5 days
INSULATION, FRONT PANEL
W10315897 W11126003 7 5 days
INSULATION, FOUR LAYER
W10526105 W10831329 8 5 days
SCREW (BLACK)
302868 WP302868 9 5 days
SCREW (WHITE)
3400836 WP3400836 9 5 days
