Model Number
-
1
WSM2420D3WW
-
2

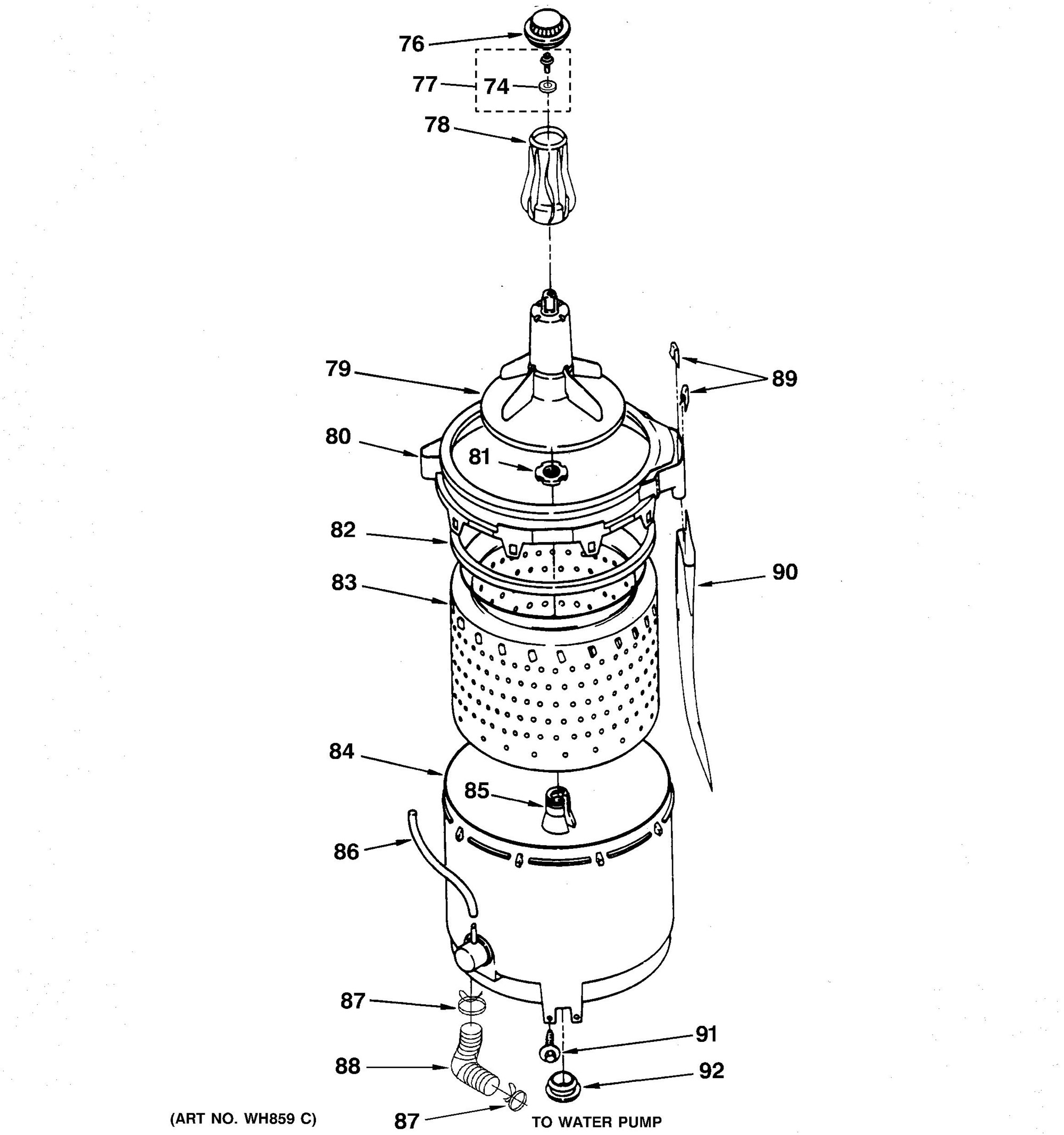

Diagram of the component your part is located in:
-
3
Description Part# Substitution# Diagram Reff ETA Action
WASHER
WH02X10131 74 1 days
CAP, AGITATOR
WH43X0133 WH43X133 76 1 days
SCREW & WASHER
WH02X1162 WH2X1162 77 1 days
FILTER, AGITATOR
WH45X0144 WH45X144 78 1 days
AGITATOR
WH43X10025 79 1 days
TUB RING & GASKET
WH45X0145 WH08X25877 80 11 days
NUT, SPANNER
WH02X1163 WH2X1163 81 1 days
GASKET, TUB RING
WH08X0372 WH8X372 82 1 days
BASKET
WH45X0146 WH45X146 83 1 days
TUB
WH45X10048 WH45X25257 84 11 days
BLOCK, DRIVE
WH40X0180 WH40X180 85 1 days
HOSE, PRESSURE SWITCH
WH41X10074 WH41X349 86 4 days
CLAMP, HOSE
WH02X10231 87 11 days
HOSE, TUB-PUMP
WH41X10135 88 11 days
CLIP
WH01X2704 89 11 days
TUBE, DRAIN-OFF
WH41X0351 WH41X351 90 1 days
SCR & WSHR (TUB MT)
WH01X10183 91 11 days
GASKET, CENTERPOST
WH08X0373 WH08X25999 92 11 days
